NEPHEL.O™ - Core Unit

NEPHEL.O™ - Core Unit

$3,500.00 - $3,500.00
$3,500.00
$3,500.00 - $3,500.00
$3,500.00

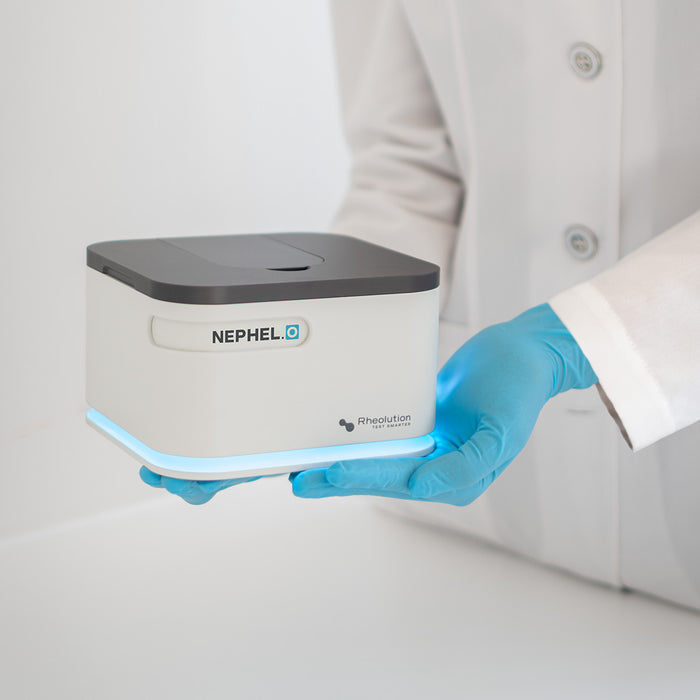

THE FIRST FULLY CUSTOMIZABLE NEPHELOMETER

NEPHEL.O™ is the latest innovation in turbidity measurement, providing a fully customizable, adaptable, scalable, connectable, actionable, and data-driven optical instrument. As part of our CASCAD.S™ instrument series, the device uses interchangeable cartridges at different wavelengths, allowing you to easily and accurately measure turbidity at a variety of scales.

You can build and augment your nephelometer as you need, when you need! Select the optical cartridges of your NEPHEL.O™ that meet your current application. Augment the capabilities of your instrument by adding new cartridges when desired. Scale your nephelometry testing system as your lab and operations are growing:
  • Select and use the emitter or receiver optical cartridge that meets your specific application
  • Place and remove interchangeable emission and reception optical cartridges with specific wavelengths
  • Order new optical cartridges as your applications evolve with time
  • Use the sample holder that suits your specific application: 10, 4 or 2 mL vials, cuvette or PCR-tube
  • Place your NEPHEL.O™ under a flow hood and operate it remotely using the wireless communication of the tablet
  • Benefit from the unique data acquisition and processing capabilities of the Soft Matter Analytics App
  • Add, at any time, new units to your system as your testing needs and applications evolver
  • Simply pair new NEPHEL.O™ units to your existing system
  • Up to five (05) NEPHEL.O™ instruments can be controlled from the same tablet running the Soft Matter Analytics App
  • Each NEPHEL.O™ unit of your custom-built system can operate using a different set of cartridges
  • Each NEPHEL.O™ unit operates independently from the other units of your system
    • Range nephelometry: 0 FTU to 200 FTU
    • Light Source / Light Detector: Laser / Si PhotoDiode
    • Emission cartridges: 850 nm, 635 nm, 520 nm and 405 nm
    • Measuring mode: Kinetics over time or single point measurement
    • Sample volume range: Vials: 2, 4 or 10 mL, Cuvette: 4.5 mL, PCR-Tube: 200 µL
    • Custom time steps between measurements: 7 seconds to 60 minutes
    • Custom total measurement time: 10 seconds to 240 hours
    • Environment: 15°C to 30°C; max 95% RH non-condensing
    • Power Supply: 100-240 VAC (±10%), 50 – 60 Hz, 1.5 A max
    • Dimensions: 146 x 146 x 94 mm (W x D x H)
    • Weight: 1.6 Kg (depends on configuration)
    • 10.5’’ Windows tablet with protective cover: 245 mm x 175 mm x 8 mm
    • Operating software: Soft Matter Analytics™ software

    *PLEASE NOTE THAT THE INSTRUMENT IS SOLD ALONE AND THAT YOU NEED TO SELECT EMISSION OPTICAL CARTRIDGES, RECEPTION OPTICAL CARTRIDGES AND A CONNECTIVITY & MONITORING TABLET TO COMPLEMENT YOUR INSTRUMENT.
