TURBIDI.T™ - Core unit

Original price $3,500.00 - Original price $3,500.00
Original price
$3,500.00
$3,500.00 - $3,500.00
Current price $3,500.00

The only IoT, Modular & Data-Driven Turbidimeter on the Market

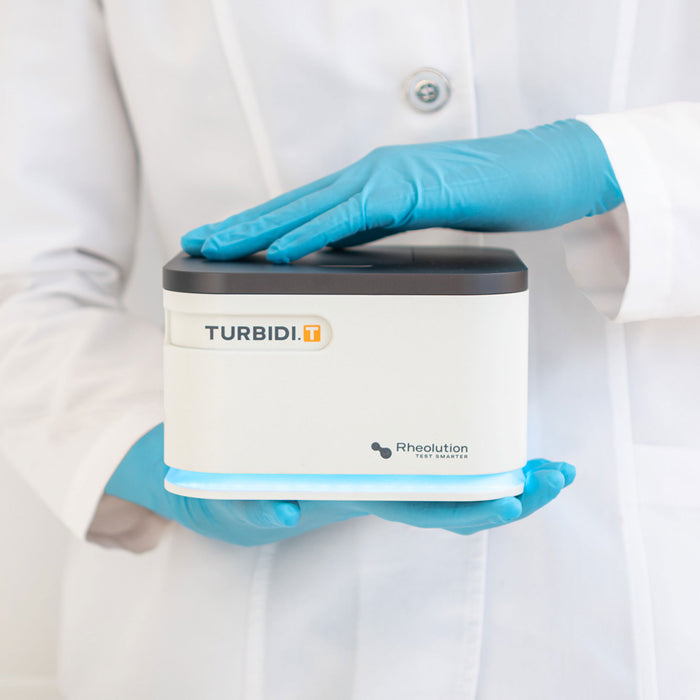

The TURBIDI.T™ is part of our CASCAD.S™ instrument series. It represents the latest advancement in turbidity measurement, delivering a fully customizable, adaptable, scalable, connectable, actionable, and data-driven turbidimeter. By using interchangeable cartridges at different wavelengths, this device enables easy and precise turbidity measurement at various scales.

You can build and augment your turbidimeter as you need, when you need. Choose the optical cartridges of your TURBIDI.T™ that match your current application and enhance the capabilities of your device by incorporating new cartridges as needed.
  • Choose the appropriate emitter or receiver optical cartridge that suits your particular application needs.
  • Easily install and remove interchangeable emission and reception optical cartridges with specific wavelengths.
  • Order new optical cartridges as your applications evolve over time.
  • Select the sample holder that best suits your specific application: 10, 4 or 1 mL vials, cuvette, or PCR-tube.
  • Position your TURBIDI.T™ under a flow hood and operate it remotely by leveraging the tablet's wireless communication capabilities.
  • Take advantage of the Soft Matter Analytics App's exceptional data acquisition and processing capabilities.
  • Experience effortless scalability and maximum flexibility with the advanced modularity of TURBIDI.T™.
  • Whether your testing needs evolve or new applications emerge, you can add new units to your system at any time.
  • Simply pair new TURBIDI.T™ units with your existing system and control up to five instruments from a single tablet with the Soft Matter Analytics™ App.
  • With each TURBIDI.T™ unit able to operate independently and with a different set of cartridges, you can tailor your system to precisely meet your needs.
  • Range turbidimetry: 0 FTU to 4000 FTU
  • Light Source / Light Detector: Laser / Si PhotoDiode
  • Emission cartridges: 850 nm, 635 nm, 520 nm and 405 nm
  • Measuring mode: Kinetics over time or single point measurement
  • Sample volume range: Vials: 2, 4 or 10 mL, Cuvette: 4.5 mL, PCR-Tube: 200 µL
  • Custom time steps between measurements: 7 seconds to 60 minutes
  • Custom total measurement time: 10 seconds to 240 hours
  • Environment: 15°C to 30°C; max 95% RH non-condensing
  • Power Supply: 100-240 VAC (±10%), 50 – 60 Hz, 1.5 A max
  • Dimensions: 146 x 146 x 94 mm (W x D x H)
  • Weight: 1.6 Kg (depends on configuration)
  • 10.5’’ Windows tablet with protective cover: 245 mm x 175 mm x 8 mm
  • Operating software: Soft Matter Analytics™ software

*PLEASE NOTE THAT THE INSTRUMENT IS SOLD ALONE AND THAT YOU NEED TO SELECT EMISSION OPTICAL CARTRIDGES, RECEPTION OPTICAL CARTRIDGES AND A CONNECTIVITY & MONITORING TABLET TO COMPLEMENT YOUR INSTRUMENT.
